Billet Dynalite Radial Mount Caliper-Nickel
Product Image Gallery

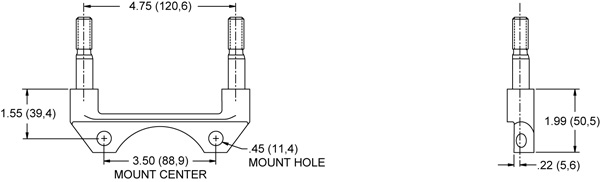

Radial Mount Bracket
Add Radial Mount Bracket 12" Rotor (Add $64.99)

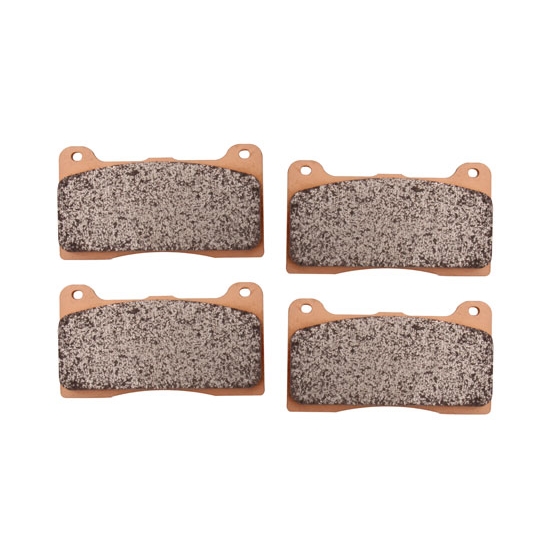

Add Brake Pad Set
Super Alloy Rotor Pads (Add $65.98)
Steel Rotor Pads (Add $51.98)
Ti Rotor Pads (Add $77.98)
Email to a Friend
Add To WishList
Wilwood’s newly redesigned Billet Narrow Mount Dynalite (NDLR) Radial Mount caliper series continues to grow in popularity in Sprint & Midget inboard applications. Starting at 2.70 pounds, this compact and lightweight design is now available in a radial mount configuration. Engineered specifically for .38” and .810” width rotors, with a single split bridge area for strength. This spacer-less design maximizes rigidity and strength. Quick-Silver Nickel plating further enhances the durability of the caliper. Billet NDLR calipers can be directly mounted over studs, or used with a radial mount bracket kit in place of a tab mount caliper.
The Billet NDLR caliper is a compact, lightweight, and rugged caliper that provides strong clamping force from four 1.75" stainless cup pistons. The bodies are fully CNC machined from billet with internal fluid ports that eliminate external fluid tubes. Each caliper is equipped with two corner bleeds and outboard inlets in the correct location for a standard Inboard mount. The bridges are equipped with stainless steel anti-rattle wear plates. These plates reduce bridge wear and provide smooth, rattle free operation of the pads. A center bridge bolt adds overall caliper strength and positive retention of the top loaded pads.
